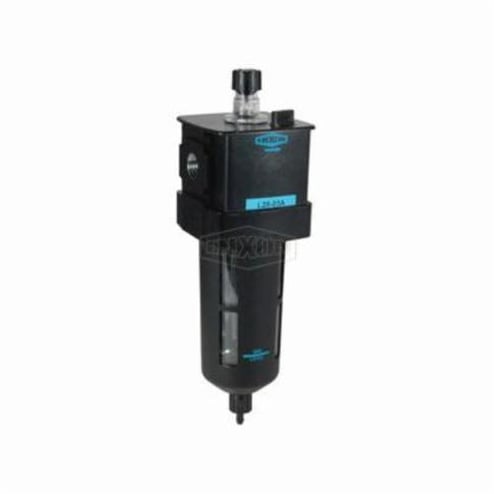

Wilkerson® by Dixon® EconOmist® L28-06A Standard Lubricator, 3/4 in NPT/BSPP-G Port, 200 scfm Flow Rate, 150 psi Pressure, Polycarbonate Bowl

SKU: DIX L28-06A

Manufacturer Part Number: L28-06A

UPC: 089109767144

Brand: Wilkerson® by Dixon®

Description

Wilkerson® by Dixon®EconOmist®Standard Lubricator, L28 Series, 3/4 in NPT/BSPP-G, 200 scfm, 150 psi, Polycarbonate Bowl, 32 to 125 deg F, Aluminum

Warranty: Limited

6.11 oz bowl
Manual drain
High flow capacity
To adjust and set oil delivery rate the unit must be pressurized and air must be flowing through the unit
Turn the sight dome, located on the top of the unit, counter clockwise to initiate oil delivery
If flow increases or decreases, the oil delivery rate will increase or decrease proportionally
Turning the sight dome clockwise will stop oil delivery
Can be filled under pressure
For all Wilkerson® lubricators, use any petroleum-base, non-detergent light weight oil (SAE 10/150 SSU) which will readily break up into a mist, that is Mobil DTE light or comparable oil, do not use any synthetic oil or oils containing additives or solvents
