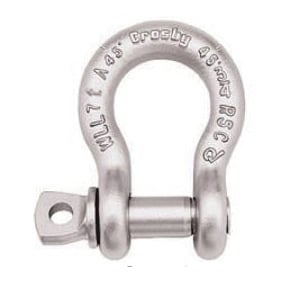

Crosby® 1017648 G-209A Anchor Shackle, 21 ton Load, 1-3/8 in, 1-1/2 in Screw Pin, Hot Dipped Galvanized


Description

Crosby® Anchor Shackle, Series: G-209A, 21 ton, 1-3/8 in, 1-1/2 in Pin Dia, Screw Pin, 5-1/4 in Inner Length, 3.63 in Inner Width, 2-1/4 in Opening, 3-5/16 in Eye Outer Size, 9.16 in Overall Length, 6.84 in Overall Width, Forged Alloy Steel Body, Alloy Steel Pin, Hot Dipped Galvanized

Specifications

Body Material Forged Alloy Steel
Eye Outer Size 3-5/16 in
Finish Hot Dipped Galvanized
Inner Length 5-1/4 in
Inner Width 3.63 in
Load Capacity 21 ton
Opening Size 2-1/4 in
Overall Length 9.16 in
Overall Width 6.84 in
Pin Diameter 1-1/2 in
Pin Material Alloy Steel
Pin Type Screw
Series G-209A
Size 1-3/8 in

Country of Origin: United States

Standards and Approvals: ABS/DNV/Lloyds/CE Certified, ASME B30.26, Federal Spec RR-C271F, Type IVA, Grade B, Class 2

Application:
For pick and place applications and permanent or long term installations

Features

  • Meets performance requirements of grade 8 shackles
  • Working load limit permanently shown on every shackle
  • Approved for use at -40 to 400 deg F
