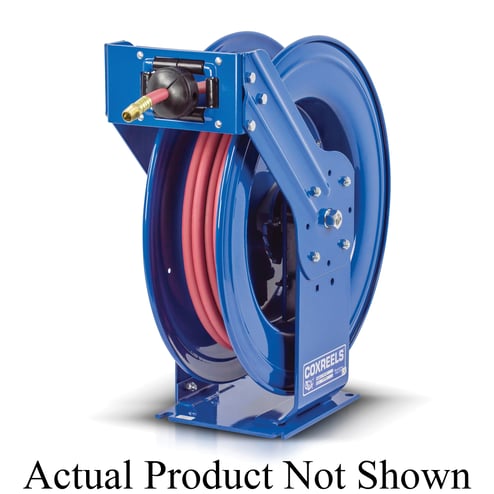

COXREELS® TSH-N-375 2-Pedestal Low Pressure Supreme Duty Spring Driven Hose Reel, 3/8 in ID x 5/8 in OD x 75 ft L Hose, 300 psi Pressure, Import


Description

COXREELS® Spring Driven Hose Reel, 2-Pedestal Low Pressure Supreme Duty, Series: T Series, 3/8 in ID x 5/8 in OD x 75 ft L Hose, 300 psi Pressure, Cartridge Style Spring Motor Drive, Bench/Ceiling/Floor/Vehicle Mounting, Brass Swivel, Nitrile Seal, 24 in L x 9-3/8 in W x 25-1/2 in H Dimensions, Steel, CPC™ Powder Coated, Blue, Import

COXREELS® T Series truck mount Spring Driven Hose Reels are the toughest hose reels in the spring driven line. The extra large chassis with dual pedestal style arms and COXREELS® Super Hub™ provides triple axle support while reducing vibration and strengthening the structural integrity of the reel. Making it perfect for off road applications that demand reliability in the most abusive and demanding environments.

Specifications

Color Blue
Dimensions 24 in L x 9-3/8 in W x 25-1/2 in H
Domestic/Import Import
Drive Type Cartridge Style Spring Motor
Finish CPC™ Powder Coated
Hose Capacity 3/8 in ID x 5/8 in OD x 75 ft L
Material Steel
Mounting Type Bench/Ceiling/Floor/Vehicle
Pressure Rating 300 psi
Seal Type Nitrile
Series T Series
Swivel Material Brass
Type 2-Pedestal Low Pressure Supreme Duty

Includes: PVC Hose

Warranty: 2 years Limited

Country of Origin: United States

Standards and Approvals: REACH 1907/2016 of EU, RoHS 2011/65/EU, RoHS 2015/863/EU, CSA C22.2 File No. 308-14/21-14/E231674, CE Certified, PROP65: This product can expose you to chemicals including Nickel, which are known to the State of California to cause cancer, and chemicals including Chromium, which are known to the State of California to cause birth defects or other reproductive harm. For more information go to - www.p65warnings.ca.gov

Application:
Air/Water Services, Pneumatic Tools, Washdown, Lubrication, Chemical Fluid Transfer, General Industrial, Manufacturing Plants and Facilities, Maintenance, Repair and Operations, Automotive and Fleet Service Centers Applications

Features

  • Swivel - machined from solid brass 90 deg full flow NPT swivel for simple seal maintenance and fast and easy hose installation
  • No need to remove the reel from its mount
  • Cartridge motor - lubricated and enclosed cartridge style motor is easily removable for safe and convenient maintenance
  • CNC spun disc - heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety
  • 1/4 in steel base - sturdy dual pedestal design with solid one-piece steel base and support post, no weld, for maximum stability
  • Equipped with COXREELS® exclusive Super Hub™ triple axle support
  • Multi-position guide arm - versatile multi-position guide arm adjusts to wall, floor, ceiling and vehicle mounting positions
  • Long-lasting, chip-resistant and rust inhibiting CPC™ powder coated finish, adjustable solid rubber hose stop and sturdy permanently lubricated precision bearing
