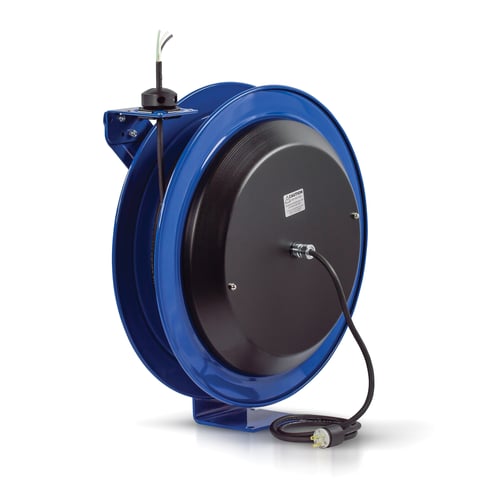

COXREELS® PC24-0012-X 1-Pedestal Spring Driven Cord Reel, 115 V, 20 A, 100 ft L Cord, 12/3 AWG Conductor


Description

COXREELS® Spring Driven Cord Reel, 1-Pedestal, Series: PC Series, 115 V, 20 A, 100 ft Cord Length, 12/3 AWG Conductor, Steel Reel, Bench/Ceiling/Floor/Vehicle Reel Mounting, Industrial Grade, Steel, 24 in L x 10-1/4 in W x 25-1/2 in H Dimensions

COXREELS® PC Series Spring Driven Power Cord Reels are heavy duty, industrial grade power sources. They replace tangled extension cords and self-retract to increase safety, productivity and efficiency. Modeled after the P and SH series, the PC Series are designed for long lasting, trouble free performance even under the most demanding conditions.

Specifications

Amperage Rating 20 A
Conductor Size 12/3 AWG
Cord Length 100 ft
Dimensions 24 in L x 10-1/4 in W x 25-1/2 in H
Grade Industrial
Material Steel
Reel Material Steel
Reel Mounting Type Bench/Ceiling/Floor/Vehicle
Series PC Series
Type 1-Pedestal
Voltage Rating 115 V

Includes: SJO Cord, 5 ft Lead Cable and Grounding Plug

Warranty: 2 years

Country of Origin: United States

Standards and Approvals: CE Certified, UL 355/1351/MH8575, CSA C22.2 File No. 308-14/21-14/E231674, REACH Compliant, RoHS Compliant, cULus Listed, UL Recognized, PROP65: This product can expose you to chemicals including Nickel, which are known to the State of California to cause cancer, and chemicals including Chromium, which are known to the State of California to cause birth defects or other reproductive harm. For more information go to - www.p65warnings.ca.gov

Application:
Power Tools, Light Source, General Industrial, Manufacturing Plants, Automotive and Fleet Service Centers, Construction Sites and Workshops Applications

Features

  • Rolled edges and ribbed discs provide strength and safety
  • Made in the USA - sold and supported worldwide
  • Component cover - external, easily accessible, heavy gauge CPC™ powder coated steel components cover for fast and simple slip ring routine maintenance
  • No need to remove the reel from its mount
  • CNC spun disc - heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety
  • 1/4 in steel base - sturdy single pedestal design with solid one-piece steel base and support post, no weld, for maximum stability and professional grade strength without the weight
  • Exclusive Super Hub™ dual axle support system
  • Multi-position guide arm - versatile guide arm adjusts to wall, floor, ceiling and vehicle mounting positions
  • Long-lasting, chip-resistant and rust inhibiting CPC™ powder coat finish, adjustable solid rubber cord stop, 5 ft lead cable and grounding plug and sturdy permanently lubricated precision bearing
  • Without accessory
