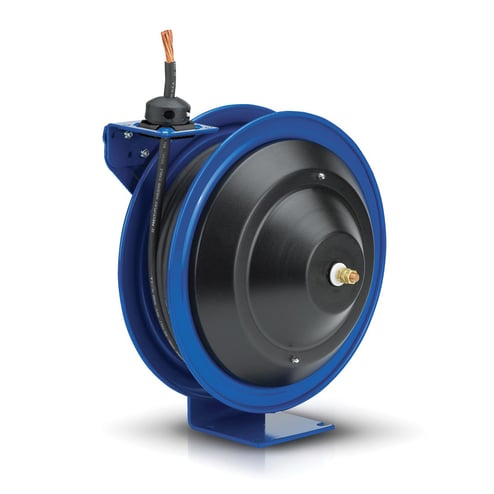

COXREELS® P-WC17-5010 1-Pedestal Specialty Spring Driven Welding Cable Reel, 600 V, 350 A, 50 ft L Cord, 1/0 AWG Conductor


Description

COXREELS® Welding Cable Reel, 1-Pedestal Specialty Spring Driven, Series: P-WC Series, 600 V, 350 A, 50 ft Cord Length, 1/0 AWG Conductor, Steel Reel, Bench/Ceiling/Floor/Vehicle Reel Mounting, Grounded Plug, Steel, 17-1/4 in L x 11 in W x 18-1/4 in H Dimensions

COXREELS® P-WC Series Spring Driven Welding Cable Reels protect and extend the life of your welding cable by neatly and conveniently storing it on a 25, 35 or 50 foot self-retracting welding cable reel. They are the solution for keeping your work area safe, organized and efficient.

Specifications

Amperage Rating 350 A
Conductor Size 1/0 AWG
Cord Length 50 ft
Dimensions 17-1/4 in L x 11 in W x 18-1/4 in H
Material Steel
Plug Type Grounded
Reel Material Steel
Reel Mounting Type Bench/Ceiling/Floor/Vehicle
Series P-WC Series
Type 1-Pedestal Specialty Spring Driven
Voltage Rating 600 V

Includes: Cord

Warranty: 2 years

Country of Origin: United States

Standards and Approvals: CE Certified, UL 355/1351/MH8575, CSA C22.2 File No. 308-14/21-14/E231674, REACH Compliant, RoHS Compliant, PROP65: This product can expose you to chemicals including Nickel, which are known to the State of California to cause cancer, and chemicals including Chromium, which are known to the State of California to cause birth defects or other reproductive harm. For more information go to - www.p65warnings.ca.gov

Application:
Manufacturing Plants, Facilities, Maintenance, Repair, Operations, Welding, Service Trucks, Welding Shops, Garage Settings, Automotive, Fleet Maintenance, Pipelines, Mining, Construction, Railroad Operations, Marine, Ship Building and Offshore Applications

Features

  • Rolled edges and ribbed discs provide strength and safety
  • Made in the USA - sold and supported worldwide
  • Component cover - external, easily accessible, heavy gauge CPC™ powder coated steel components cover for fast and simple slip ring routine maintenance
  • No need to remove the reel from its mount
  • Cartridge motor - lubricated and enclosed cartridge style motor is easily removable for safe and convenient maintenance
  • CNC spun disc - heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety
  • 1/4 in steel base - sturdy single pedestal design with solid one-piece steel base and support post, no weld, for maximum stability and professional grade strength without the weight
  • Exclusive Super Hub™ dual axle support system
  • Multi-position guide arm - versatile guide arm adjusts to wall, floor, ceiling and vehicle mounting positions
  • Long-lasting, chip-resistant and rust inhibiting CPC™ powder coat finish, adjustable solid rubber hose stop, welding cable, cable clamp available and sturdy permanently lubricated precision bearing
