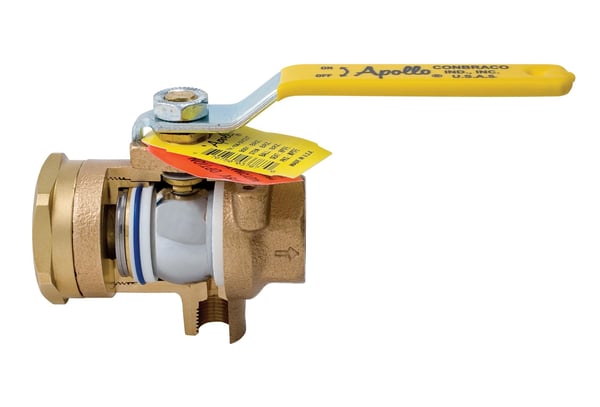

Apollo™ 7K105SV 7K-100-SV 2-Piece Ball Valve, 1 in Nominal, FNPT End Style, Bronze Body, Full Port, Fluorosilicone/RPTFE Softgoods, Domestic


Description

Apollo™, 7K105SV, Ball Valve, 2-Piece, Series: 7K-100-SV, 1 in Nominal, FNPT End Style, 200 psi Pressure, -20 to 150 deg F, Full Port, Media: Gas/Water, Lever Handle Actuator, Chrome Plated Brass Ball, 3.86 in Inlet to Outlet Length, 2.69 in Top to Inlet Center, Bronze Body, Fluorosilicone/RPTFE Softgoods, Domestic

Specifications

Actuator Type Lever Handle
Ball Material Chrome Plated Brass
Body Material Bronze
Domestic/Import Domestic
End Style FNPT
Inlet to Outlet Length 3.86 in
Media Gas/Water
Nominal Size 1 in
Port Type Full
Pressure Rating 200 psi
Series 7K-100-SV
Softgoods Material Fluorosilicone/RPTFE
Temperature Rating -20 to 150 deg F
Top to Inlet Center 2.69 in
Trim Material Brass/RPTFE
Type 2-Piece

Includes: Adjustable Packing Gland, Safety Vent

Warranty: 5 Years

Country of Origin: United States

Standards and Approvals: ASTM B584 C84400 Body/B16 Ball/Stem, PROP65: Cancer and Reproductive Harm

Features

  • Reinforced seat
  • Blow-out proof stem design
  • Downstream venting in closed position
  • Mounting pad for easy actuator mounting
  • Full port for full flow
  • Female NPT threaded drain port
  • RPTFE stem packing and fluorosilicone O-ring
