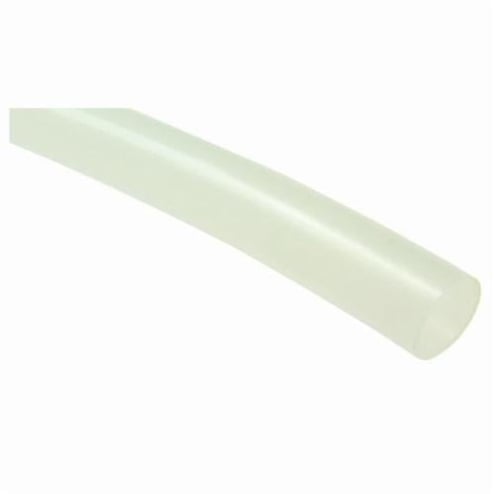

Coilhose® NC0440-500N Standard Nylon Tubing, 0.17 in ID x 1/4 in OD x 500 ft L, 0.04 in THK Wall, Domestic


Description

Coilhose® Nylon Tubing, Standard, Series: NC Series, 0.17 in ID, 1/4 in OD, 500 ft Length, 0.04 in Wall Thickness, 330 psi Working, -60 to 200 deg F, Natural, Domestic

Specifications

Color Natural
Domestic/Import Domestic
Inside Diameter 0.17 in
Length 500 ft
Outside Diameter 1/4 in
Series NC Series
Temperature Rating -60 to 200 deg F
Type Standard
Wall Thickness 0.04 in
Working Pressure 330 psi

Country of Origin: United States

Standards and Approvals: UL 94HB

Features

  • For applications requiring low density, lightweight toughness, flexibility and chemical resistance
  • Its dimensional stability makes it compatible with Coilock fittings and poly-tube fittings
  • Packaged on reels
  • 28 in hg Vacuum rating
  • 0.002 -0.004 in tolerance
  • 78 Rockwell R hardness
  • UV Stabilized
