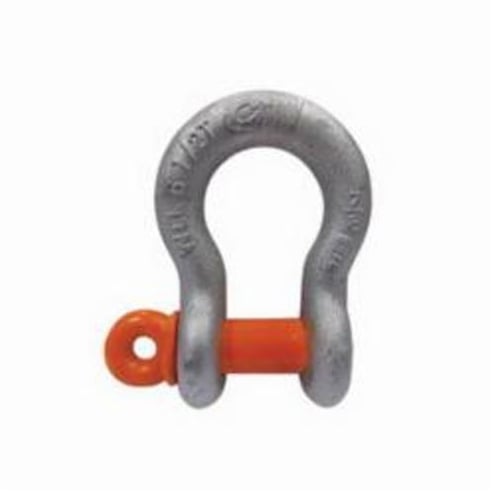

CM® MC654G Anchor Shackle, 8.5 ton Load, 1 in, 1.13 in Dia Screw Pin, Galvanized


Description

CM® Anchor Shackle, 8.5 ton Load, 1 in Size, 1.13 in Pin Diameter, Screw Pin, 3-3/4 in Inner Length, 2.52 in Inner Width, 1.72 in Opening, 2.44 in Eye Outer, Carbon Steel Body, Alloy Steel Pin, Galvanized

Screw pin anchor/chain shackles allow quick and easy removal of the screw pin and can be useful in applications where the shackle is frequently removed, but not so much in applications where the pin is subject to torque or twisting.

Specifications

Body Material Carbon Steel
Eye Outer Size 2.44 in
Finish Galvanized
Inner Length 3-3/4 in
Inner Width 2.52 in
Load Capacity 8.5 ton
Opening Size 1.72 in
Pin Diameter 1.13 in
Pin Material Alloy Steel
Pin Type Screw
Size 1 in

Country of Origin: United States

Standards and Approvals: ASTM A153, Federal Specification RR-C-271D

Features

  • Manufactured from technically advanced micro alloy steel with optimal hardness for strength and ductility
  • Standard industry tolerances apply
  • Working load limit and traceability codes shown as permanent markings on body
  • All shackles have alloy quenched and tempered pins
  • Ultimate strength equals 5 times working load limit
  • 5:1 design factor
  • Galvanized finish
