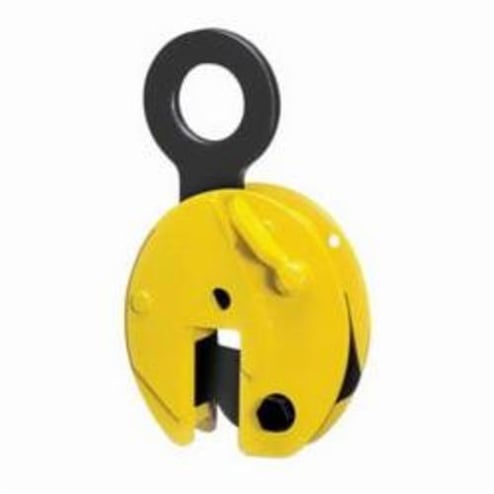

CM® Camlok™ 92500 Universal Plate Lifting Clamp, 120 to 1100 lb Load, 5/8 in Jaw, 3.898 in OAW, Hardened Steel Jaw and Pad, Load Activated Locking


Description

CM® Camlok™ Plate Lifting Clamp, Universal, 120 to 1100 lb, 5/8 in Jaw Opening, 1.142 in Bail Opening Width, 3.898 in Overall Width, Load Activated Locking, Hardened Steel Jaw and Pad

Specifications

Bail Opening Width 1.142 in
Jaw Opening 5/8 in
Load Capacity 120 to 1100 lb
Locking Type Load Activated
Material Hardened Steel Jaw and Pad
Overall Width 3.898 in
Series Camlok™
Type Universal

Country of Origin: United Kingdom

Standards and Approvals: ANSI/ASME B30.20

Features

  • Body of clamp is welded construction
  • Can be used to lift a plate from the horizontal to vertical position and vice versa through 180 deg
  • Clamp jaws and pads are manufactured from high tensile steel
  • Fitted with a hold open and lock closed lever
  • To initiate the self actuating force, a spring is incorporated into the clamp to give an initial bite on the material
  • If the plate should start to slip during lifting, the cam shape of the jaw turns with the material and increases the gripping force
  • The cam handle is ergonomically designed with a flat surface to allow for ease of operation while wearing protective gloves
  • The cam handle connects to the cam via a robust square drive
  • Unlike others, these plate clamps are designed with a sloping slot, which increases the grip on the load when the clamp is in the horizontal position
  • Design factor 4:1
  • Load ring lifting point
