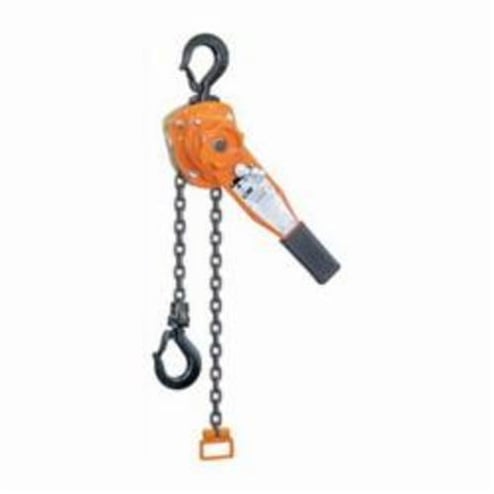

CM® 5321 653 Lever Chain Hoist, 3 ton Load, 10 ft H Lifting, 77 lb Rated


Description

CM® Lever Chain Hoist, Series: 653, 3 ton Load, 10 ft Lifting Height, 18-11/16 in Minimum Between Hooks, 77 lb Pull to Lift, 16-1/4 in Lever Length, Hardened Steel Chain, 1 Reeving, Weston Brake, Short Handle

Specifications

Brake Type Weston
Chain Material Hardened Steel
Handle Type Short
Lever Length 16-1/4 in
Lifting Height 10 ft
Load Capacity 3 ton
Minimum Between Hooks 18-11/16 in
Pull to Lift Rated Load 77 lb
Reeving 1
Series 653

Country of Origin: China

Standards and Approvals: ASME B30.21, CE Listed

Application:
Close Quarter Pulling, Hoisting and Stretching

Features

  • Impact resistant, stamped steel frame, gear case and cover for durability and light weight
  • Powder coated finish for added corrosion protection
  • Hardened steel load sharing gears
  • Double pawl arrangement for assured load control
  • Two chain guide rollers for positive chain engagement
  • Weston type braking system for positive load control and positioning
  • Simple one-handed, free chaining for fast load attachment
  • Hardened steel chain for strength and long wear life
  • Forged upper and lower hooks with heavy cast steel latches
  • Rubber handle grip for added operator comfort
  • Minimal maintenance with no special tools required
