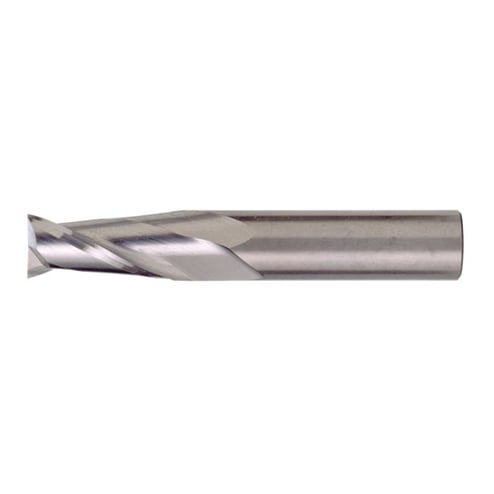

Cleveland® C81045 CEM-SE-2 Center Cutting General Purpose Long Length Single End Square End End Mill, 3/8 in Dia Cutter, 1-1/8 in Length of Cut, 2 Flutes, 3/8 in Dia Shank, 3 in OAL, TiAlN Coated


Description

Cleveland® End Mill, Center Cutting General Purpose Long Length Single End Square End, Series: CEM-SE-2, 3/8 in Diameter Cutter, 3 in Overall Length, 1-1/8 in Length of Cut, 2 Flutes, Spiral Flute, 3/8 in Shank Diameter, Right Hand Cutting Direction, 35 deg Helix Angle, Straight Shank, Solid Carbide, TiAlN Coated

Specifications

Cutter Diameter 3/8 in
Cutting Direction Right Hand
Finish TiAlN Coated
Flute Type Spiral
Helix Angle 35 deg
Length of Cut 1-1/8 in
Material Solid Carbide
Number of Flutes 2
Overall Length 3 in
Series CEM-SE-2
Shank Diameter 3/8 in
Shank Type Straight
Type Center Cutting General Purpose Long Length Single End Square End
Application:
Drilling, Plunging and Slotting

Features

  • 10% Cobalt submicron grain carbide substrate
  • 30 deg right hand spiral, right hand cut helix designed for maximum chip clearance
  • Use in general milling applications in medium to low carbon steels, cast iron, non-ferrous light metals and plastics
  • 2-Flute end mills are generally used for plunging, slotting and heavy peripheral cuts
  • -0.003 in cutting diameter tolerance
  • -0.0005 in (h6) shank diameter tolerance
  • Applicable on steel, cast iron, special alloys and non-ferrous materials
