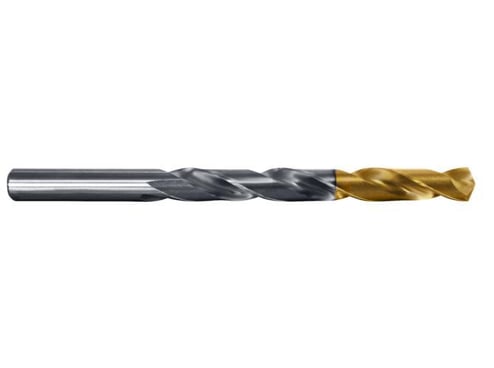

Cle-Line® C97309 1500-TT Heavy Duty Jobber Length Drill, 3/16 in Drill - Fraction, 0.187 in Drill - Decimal Inch, 135 deg Point Angle, HSS, TiN Coated Tip


Description

Cle-Line®, C97309, Jobber Length Drill, Heavy Duty, Series: 1500-TT, Imperial, 3/16 in Drill - Fraction, 0.187 in Drill - Decimal Inch, 3.5 in Overall Length, 2 Flutes, Spiral Flute, 2.312 in Flute Length, 0.187 in Dia x 1.187 in L Shank, Straight Shank, 135 deg Point, Split Point, Right Hand Cutting Direction, Through Coolant (Yes/No): No, HSS, TiN Coated Tip

Specifications

Cutting Direction Right Hand
Drill Diameter Measurement System Imperial
Drill Size - Decimal Inch 0.187 in
Drill Size - Fraction 3/16 in
Finish TiN Coated Tip
Flute Length 2.312 in
Flute Type Spiral
Material HSS
Number of Flutes 2
Overall Length 3.5 in
Point Angle 135 deg
Point Type Split
Series 1500-TT
Shank Size 0.187 in Dia x 1.187 in L
Shank Type Straight
Through Coolant (Yes/No) No
Type Heavy Duty
