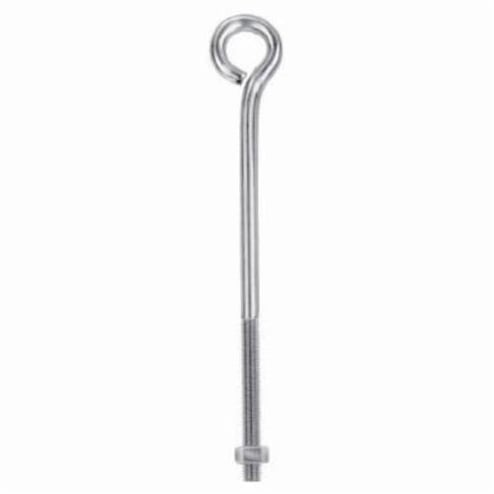

Chicago Hardware 07110 9 Turned Eye Bolt, 5/16-18, 3 in L Shank, Low Carbon Steel, Zinc Plated


Description

Chicago Hardware Turned Eye Bolt, Measurement System: Imperial, 5/16-18 Thread, 3 in Shank Length, Low Carbon Steel, Zinc Plated, 5/8 in ID Eye, 1-11/64 in OD Eye, Machine Thread, 4-1/8 in Overall Length, 96 lb Working Load, 1-1/2 in Thread Length

Specifications

Diameter - Thread Size 5/16-18
Finish Zinc Plated
Inside Eye Diameter 5/8 in
Material Low Carbon Steel
Measurement System Imperial
Outside Eye Diameter 1-11/64 in
Overall Length 4-1/8 in
Shank Length 3 in
Thread Length 1-1/2 in
Thread Type Machine
Working Load 96 lb

Country of Origin: United States

Standards and Approvals: TAA Compliant

Features

  • Turned eye bolts are manufactured from low carbon cold drawn steel wire and are supplied with NC rolled machine threads with one hex nut unassembled
  • Rust preventive finishes or self-colored available on a special basis
  • 5/16 in Dia shank
