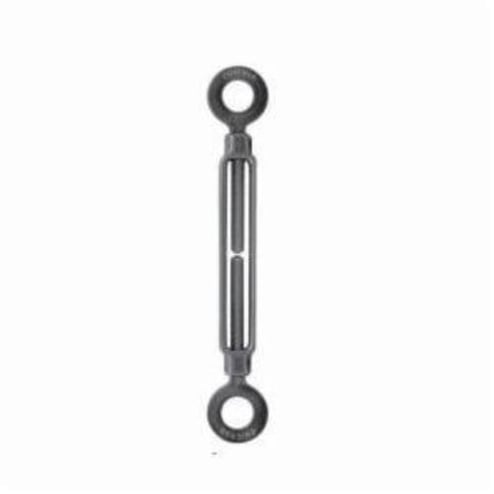

Chicago Hardware 01148 8 Class D Turnbuckle, Eye/Eye, 3/4 in Thread, 5200 lb Working, 6 in Take Up, 14-3/4 in L Close, Drop Forged Steel


Description

Chicago Hardware Turnbuckle, Class D, Eye/Eye End/End, 3/4 in Thread Dia, 5200 lb Working, 6 in Take Up, 14-3/4 in Close Length, Drop Forged Steel, Self-Colored

Specifications

Closed Length 14-3/4 in
End/End Eye/Eye
Finish Self-Colored
Material Drop Forged Steel
Take Up 6 in
Thread Diameter 3/4 in
Type Class D
Working Load 5200 lb

Country of Origin: United States

Standards and Approvals: ASTM F1145-92 Type 1 Grade 1

Features

  • Maximum load ratings are based on a straight vertical lift in a gradually increasing manner
  • Any deviations as angular lifts, shock loads, modification of the basic part, etc, will result in drastically reduced maximum loads
  • Loads are based on a safety factor of 5 to 1
  • Eye, jaw and hook fittings are heat treated
