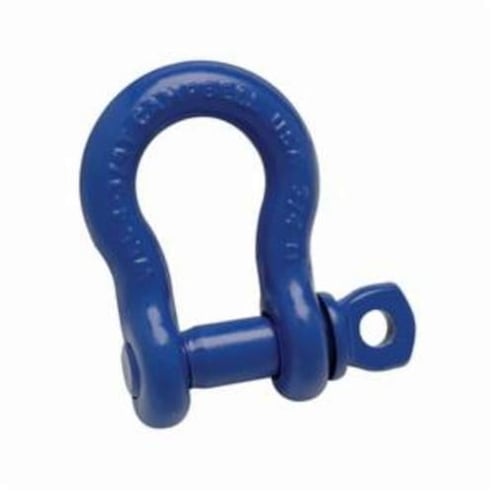

Campbell® 5411805 419-S Anchor Shackle, 9.5 ton Load, 1-1/8 in, 1-1/4 in Dia Screw Pin, Painted


Description

Campbell® Anchor Shackle, Series: 419-S, 9.5 ton, 1-1/8 in, 1-1/4 in Pin Dia, Screw Pin, 4-1/4 in Inner Length, 2-15/16 in Inner Width, 1-13/16 in Opening, 2-5/8 in Eye Outer Size, Drop Forged Carbon Steel Body, Alloy Steel Pin, Painted

Campbell® can trace its beginnings back to 1834, when one of the many companies that eventually became what is today the Campbell® brand began manufacturing harnesses for horses. Over the years, countless products were added, including wire rope and chain fittings, drop forged chain hardware, high quality tackle blocks, shackles, hooks and much more.

Specifications

Body Material Drop Forged Carbon Steel
Eye Outer Size 2-5/8 in
Finish Painted
Inner Length 4-1/4 in
Inner Width 2-15/16 in
Load Capacity 9.5 ton
Opening Size 1-13/16 in
Pin Diameter 1-1/4 in
Pin Material Alloy Steel
Pin Type Screw
Series 419-S
Size 1-1/8 in

Warranty: Lifetime Limited

Country of Origin: United States

Standards and Approvals: Federal Specification RR-C-271, Class 2, Grade A, Type IVA, ASME B30.26, ASTM A153

Features

  • Self colored (painted blue)
  • Working load limit, size, manufacture name, date code and USA permanently marked on each shackle
  • Statistically tested for impact resistance, tensile strength, hardness, ductility and fatigue
  • 419 series shackles meet or exceed all manufacturing requirements of the ASME B30.26 "rigging hardware", these include the material ductility requirement (Section 26-1.1.2), the design factor requirement (Section 26.1.2), the identification requirement (Section 26-1.5.1) and the effective temperature range (Section 26-1.6.1), the shackles can be proof tested in accordance with Section 26-1.4
  • 6:1 design factor
  • Pins and bolts are heat treated and made of alloy steel
  • Working load limit permanently shown on every shackle
