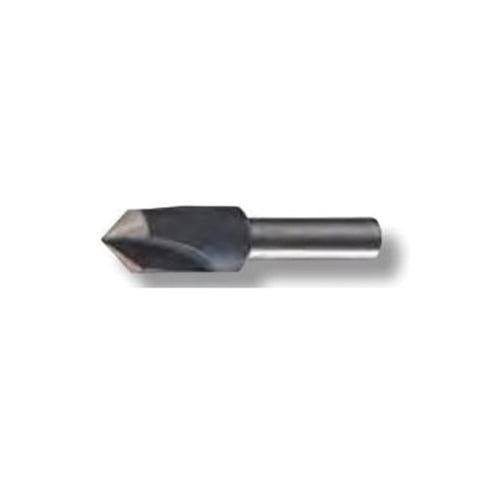

Cleveland® C46176 1003 General Purpose Single End Countersink, 3/4 in Dia Body, 1/2 in Dia Shank, 3 Flutes, 90 deg Included, HSS


Description

Cleveland® Countersink, General Purpose Single End, Series: 1003, 3/4 in Diameter Body, 2-5/8 in Overall Length, Straight Shank, 1/2 in Shank Diameter, 3 Flutes, Right Hand Cutting Direction, 90 deg Included Angle, 45 deg Centerline Angle, HSS, Steam Oxide

Specifications

Body Diameter 3/4 in
Centerline Angle 45 deg
Cutting Direction Right Hand
Finish Steam Oxide
Included Angle 90 deg
Material HSS
Number of Flutes 3
Overall Length 2-5/8 in
Series 1003
Shank Diameter 1/2 in
Shank Type Straight
Type General Purpose Single End

Standards and Approvals: ANSI Specified

Application:
General Purpose Drilling Applications

Features

  • The pre-drilled hole for countersinking should not be less than 10% of the countersink diameter
  • Use multi-flute countersinks for much larger holes
  • Run countersinks at 50 to 66% of recommended drill speeds
