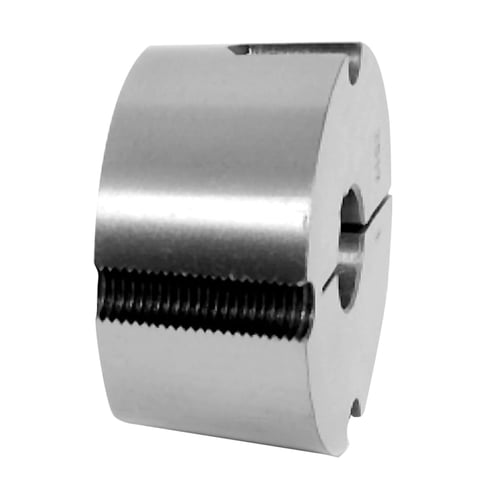

Bando TL® TL1210 1 1/8 Taper Lock Bushing, 1-1/8 in Dia Bore, 1-7/8 in Dia Barrel, 1 in OAL


Description

Bando TL® Taper Lock Bushing, 1-1/8 in Bore Dia, 1-7/8 in Barrel Dia, 8 deg Taper, 1-3/4 in Bolt Circle, (2) 3/8 x 5/8 in Screw, For Use with: 1/2, 3/4 and 1 in W Industrial Belts, Synchro-Link® Trapezoidal and High Torque Timing Belt, 1 in Overall Length, 1-1/4 in Full Keyway

TL® bushings are preferred where mounting space is at a premium. The TL® bushing can only be installed in the conventional (large end outboard) position.

Specifications

Barrel Diameter 1-7/8 in
Bolt Circle Diameter 1-3/4 in
Bore Diameter 1-1/8 in
Keyway Size 1-1/4 in Full
Overall Length 1 in
Screw Size (2) 3/8 x 5/8 in
Suitable For Use With 1/2, 3/4 and 1 in W Industrial Belts, Synchro-Link® Trapezoidal and High Torque Timing Belt
Taper 8 deg

Warranty: 1 year

Features

  • For optimum performance, combine Bando Synchro-Link® timing belts and timing belt bushings/pulleys
  • Bando Synchro-Link® timing belt pulleys and bushings are manufactured to exacting tolerances to assure total drive system compatibility
