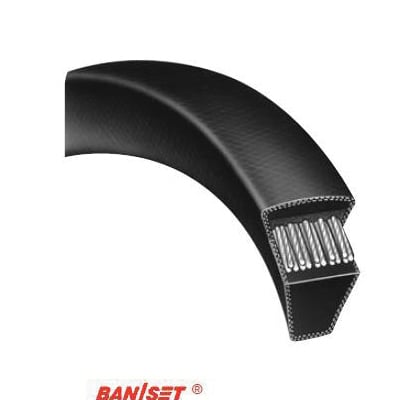

Bando Power Ace® 8V3350 Narrow Profile V-Belt, 8V Section, 1 in W Top, 335 in L Outside, 0.88 in THK, Rubber


Description

Bando Power Ace® V-Belt, Narrow Profile, 8V Section, 1 in Top Width, 335 in Outside Length, 0.88 in Thickness, 12-1/2 in Minimum Pulley Dia, Rubber, Polyester Reinforced

Bando's Power Ace® narrow profile V-belt transmits power more efficiently and effectively, delivering higher horsepower ratings than classical cross section belts. Power Ace® should be considered for any new drive application, as they can transmit the same load as classical belts in 1/2 to 2/3 the space.

Specifications

Material Rubber
Minimum Pulley Diameter 12-1/2 in
Outside Length 335 in
Reinforced Material Polyester
Section Size 8V
Thickness 0.88 in
Top Width 1 in
Type Narrow Profile

Standards and Approvals: RMA IP-22

Application:
Industrial

Features

  • The special bias cut angle of the cover fabric reduces stress as the belt bends around sheaves, lowering heat build up that shortens belt life
  • Extra strong polyester cords are treated for fatigue, stretch resistance and adhesion to assure the longest possible belt life
  • The rubber compound of the body is engineered to maintain structural uniformity while maintaining the flexibility to reduce heat build up
  • Meets RMA standards for oil and heat resistance and static conductivity
