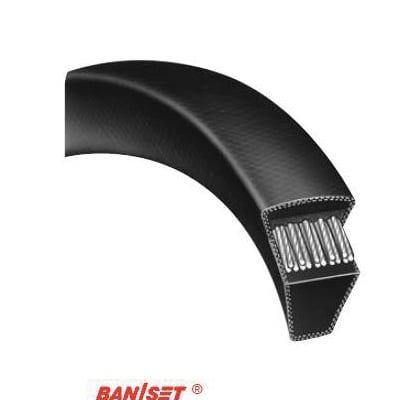

Bando Power Ace® 5V1800 Narrow Profile V-Belt, 5V Section, 0.62 in W Top, 180 in L Outside, 0.54 in THK, Rubber


Description

Bando Power Ace® V-Belt, Narrow Profile, 5V Section, 0.62 in Top Width, 180 in Outside Length, 0.54 in Thickness, 7.1 in Minimum Pulley Dia, Rubber, Polyester Reinforced

Bando's Power Ace® narrow profile V-belt transmits power more efficiently and effectively, delivering higher horsepower ratings than classical cross section belts. Power Ace® should be considered for any new drive application, as they can transmit the same load as classical belts in 1/2 to 2/3 the space.

Specifications

Material Rubber
Minimum Pulley Diameter 7.1 in
Outside Length 180 in
Reinforced Material Polyester
Section Size 5V
Thickness 0.54 in
Top Width 0.62 in
Type Narrow Profile

Standards and Approvals: RMA IP-22

Application:
Industrial

Features

  • The special bias cut angle of the cover fabric reduces stress as the belt bends around sheaves, lowering heat build up that shortens belt life
  • Extra strong polyester cords are treated for fatigue, stretch resistance and adhesion to assure the longest possible belt life
  • The rubber compound of the body is engineered to maintain structural uniformity while maintaining the flexibility to reduce heat build up
  • Meets RMA standards for oil and heat resistance and static conductivity
