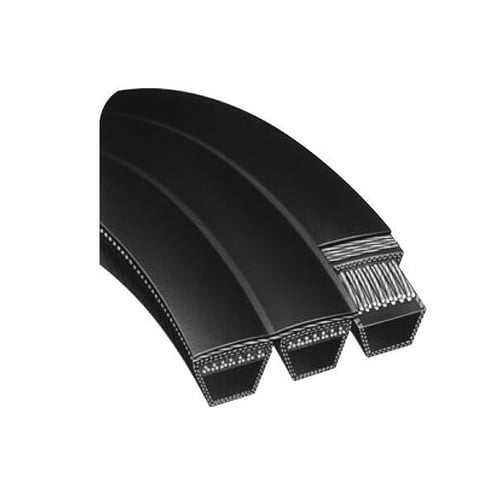

Bando Power King® 3C144 Classical Combo V-Belt, C Section, 3 in W Top, 148.88 in L Outside, 0.63 in THK, Rubber Impregnated Fabric


Description

Bando Power King® Combo V-Belt, Classical, C Section, 3 in Top Width, 148.88 in Outside Length, 0.63 in Thickness, 3 Ribs, 9 in Minimum Pulley Dia, Rubber Impregnated Fabric, Polyester Reinforced

To resolve problem applications where belts are flipping over or jumping out of the sheaves, utilize Bando's series of Combo belts. The tie band assures lateral rigidity and guides the belts into the sheave grooves.

Specifications

Material Rubber Impregnated Fabric
Minimum Pulley Diameter 9 in
Number of Ribs 3
Outside Length 148.88 in
Reinforced Material Polyester
Section Size C
Thickness 0.63 in
Top Width 3 in
Type Classical

Warranty: 1 year

Standards and Approvals: ARPM Standard, RMA IP-20

Application:
Industrial

Features

  • The tie band, reinforced with high strength transverse tensile cords, is fully oil and heat resistant and permanently welds the individual belts together
  • Utilize the premium quality of the Bando Power King®
  • Assures equal load distribution in drives where high shock or pulsating loads cause belts to whip, flip over or jump out of the sheave grooves
  • Ideal for use on vertical shaft drives
  • Meets RMA standards for oil and heat resistance and static conductivity
