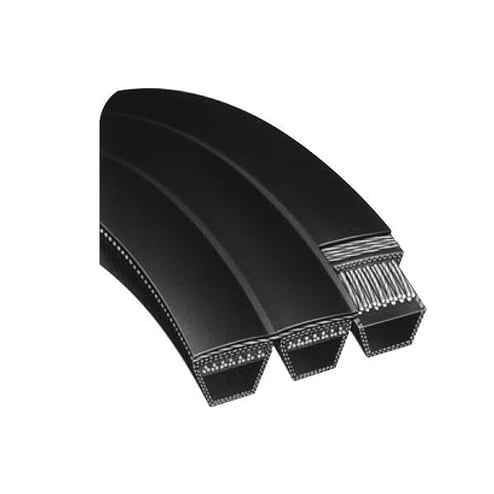

Bando Power Ace® 3-8V2240 Banded Combo V-Belt, 8V Section, 3.39 in W Top, 225 in L Outside, 0.98 in THK, Rubber


Description

Bando Power Ace® Combo V-Belt, Banded, 8V Section, 3.39 in Top Width, 225 in Outside Length, 0.98 in Thickness, 3 Ribs, 12-1/2 in Minimum Pulley Dia, Rubber

To resolve problem applications where belts are flipping over or jumping out of the sheaves, utilize Bando series of Combo belts. The tie band assures lateral rigidity and guides the belts into the sheave grooves.

Specifications

Material Rubber
Minimum Pulley Diameter 12-1/2 in
Number of Ribs 3
Outside Length 225 in
Section Size 8V
Thickness 0.98 in
Top Width 3.39 in
Type Banded

Standards and Approvals: RMA IP-22

Application:
Industrial

Features

  • The tie band, reinforced with high strength transverse tensile cords, is fully oil and heat resistant and permanently welds the individual belts together
  • Utilize the premium quality of the Bando Power Ace®
  • Assures equal load distribution in drives where high shock or pulsating loads cause belts to whip, flip over or jump out of the sheave grooves
  • Ideal for use on vertical shaft drives
  • Meets RMA standards for oil and heat resistance and static conductivity
