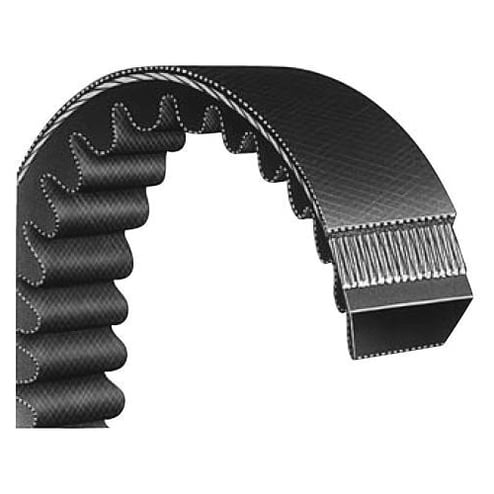

Bando Power Max® 1422V480 Variable Speed Extreme Crosswise Rigidity V-Belt, 7/8 in W Top, 22 deg Groove, 48-1/2 in L Outside, Fabric


Description

Bando Power Max® V-Belt, Variable Speed Extreme Crosswise Rigidity, 7/8 in Top Width, 22 deg Groove Angle, 48-1/2 in Outside Length, Fabric, Polyester Reinforced

As Power Max® belts are wide in proportion to their thickness, they must have extreme crosswise rigidity to keep them from dishing in. This dishing would cause the tensile cords to become misaligned, leading to uneven speed control and excessive wear on the cords, causing premature failure.

Specifications

Groove Angle 22 deg
Material Fabric
Outside Length 48-1/2 in
Reinforced Material Polyester
Top Width 7/8 in
Type Variable Speed Extreme Crosswise Rigidity

Warranty: 1 year

Standards and Approvals: ARPM Standard, RMA IP-25

Application:
For use with pulley

Features

  • Power Max® belts provide lengthwise flexibility to bend around small sheave diameters without excess strain that would shorten belt life
  • Tough polyester cords won't fatigue, even with repeated shock loads
  • Cords are specially treated to resist stretch and carry high horsepower loads
  • Transversely aligned fiber reinforcement in the belt cogs assures crosswise rigidity and flexibility to reduce heat build up and minimize cracking
  • Meets RMA standards for oil and heat resistance and static conductivity
