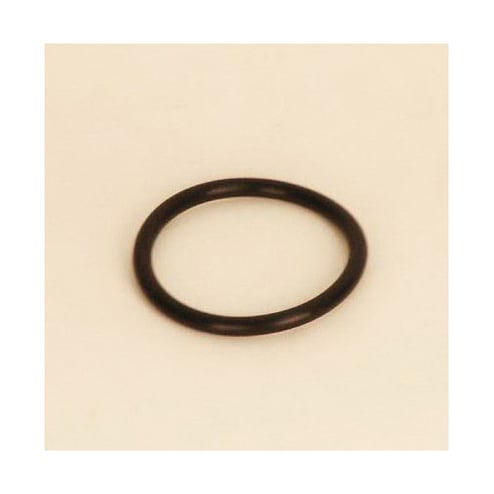

APG H70159 H70 O-Ring, 159 Dash Number, 5 in ID 5.187 in OD, Nitrile, 70 Durometer, Import


Description

APG, H70159, O-Ring, Series: H70, 5 in ID, 5.187 in OD, 0.093 in Cross Section, Round Cross Section, 159 Dash Number, 70 Durometer, Standard Hardness, -40 to 250 deg F, Nitrile, Black, Import

An O-Ring functions as a seal through the mechanical deformation of the elastomeric compound by mating metal surfaces. The resilient rubber conforms to the shape of the metal sections and blocks the passage of gases or liquids. If the pressure increases, the O-Ring is further deformed and provides tighter sealing.

Specifications

Color Black
Cross Section 0.093 in
Cross Section Shape Round
Dash Number 159
Domestic/Import Import
Durometer 70
Hardness Standard
Inside Diameter 5 in
Material Nitrile
Outside Diameter 5.187 in
Series H70
Temperature Rating -40 to 250 deg F

Country of Origin: Viet Nam

Application:
The most widely used O-Ring elastomer. Excellent resistance to petroleum products. Excellent compression set, tear and abrasion resistance. Does not have good resistance to ozone, sunlight, or weather, unless specifically compounded. Should not be stored in direct sunlight or near motors or other electrical equipment which may generate ozone. Temperature range: -40° to +250°F.

Features

  • The most widely used O-ring elastomer
  • Excellent resistance to petroleum products
  • Excellent compression set, tear and abrasion resistance
  • Does not have good resistance to ozone, sunlight or weather, unless specifically compounded
  • Should not be stored in direct sunlight or near motors or other electrical equipment which may generate ozone
