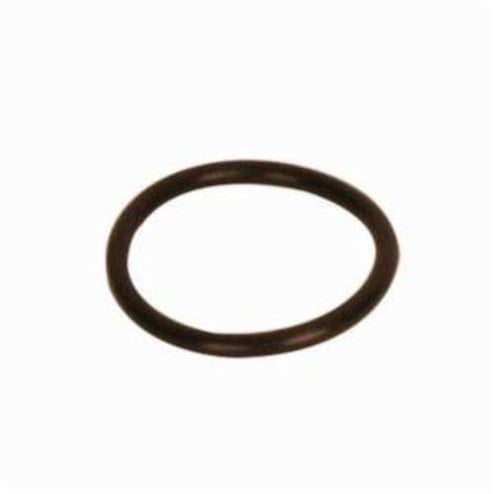

APG H70005 H70 O-Ring, 005 Dash Number, 0.093 in ID 0.218 in OD, Nitrile, 70 Durometer, Import


Description

APG, H70005, O-Ring, Series: H70, 0.093 in ID, 0.218 in OD, 0.062 in Cross Section, Round Cross Section, 005 Dash Number, 70 Durometer, Standard Hardness, -40 to 250 deg F, Nitrile, Black, Import

The most widely used O-Ring elastomer. Excellent resistance to petroleum products. Excellent compression set, tear and abrasion resistance. Does not have good resistance to ozone, sunlight, or weather, unless specifically compounded. Should not be stored in direct sunlight or near motors or other electrical equipment which may generate ozone. Temperature range: -40° to +250°F.

Specifications

Color Black
Cross Section 0.062 in
Cross Section Shape Round
Dash Number 005
Domestic/Import Import
Durometer 70
Hardness Standard
Inside Diameter 0.093 in
Material Nitrile
Outside Diameter 0.218 in
Series H70
Temperature Rating -40 to 250 deg F

Country of Origin: Viet Nam

Standards and Approvals: AS 568A, ASTM D2000, SAE J200

Application:
The most widely used O-Ring elastomer. Excellent resistance to petroleum products. Excellent compression set, tear and abrasion resistance. Does not have good resistance to ozone, sunlight, or weather, unless specifically compounded. Should not be stored in direct sunlight or near motors or other electrical equipment which may generate ozone. Temperature range: -40° to +250°F.

Features

  • Excellent resistance to petroleum products
  • Excellent compression set, tear and abrasion resistance
  • Does not have good resistance to ozone, sunlight or weather, unless specifically compounded
  • Should not be stored in direct sunlight or near motors or other electrical equipment which may generate ozone
  • Compatible with HFA, HFB and HFC fluids
  • O-ring functions as a seal through the mechanical deformation of the elastomeric compound by mating metal surfaces
