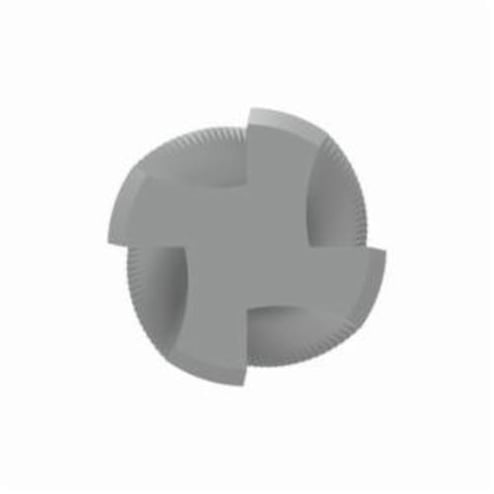

Allied Machine & Engineering AccuThread™ 856® TMUK0006-32 Helical Flute Thread Mill, #6-32 UN Thread, 2 in OAL, 3 Flutes, 1/8 in Dia Shank


Description

Allied Machine & Engineering AccuThread™ 856® Thread Mill, Helical Flute, #6-32 Thread, UN Thread, 0.1 in Diameter Cutting, 0.218 in Length of Cut, 2 in Overall Length, 3 Flutes, Cylindrical Shank, 1/8 in Shank Diameter

The AccuThread 856 is AMEC's premium threadmilling product range, manufactured from micro grain carbide and coated in AMEC's AM210® premium coating. This product is designed for the demanding environment of high production threadmilling, providing extraordinary tool life and exceptionally high quality thread forms. The AccuThread range is available in a wide selection of thread standards and forms part of our specials program, allowing you to tailor design threadmills to your specific requirements.

Specifications

Cutting Diameter 0.1 in
Length of Cut 0.218 in
Number of Flutes 3
Overall Length 2 in
Shank Diameter 1/8 in
Shank Type Cylindrical
Thread Size #6-32
Thread Type UN
Type Helical Flute

Country of Origin: United States

Features

  • AccuThread 856® standard cutting lengths allow for multiple applications without the need for special threadmills
  • Helical flute which offers increased strength and rigidity when forces are applied
  • Allied's proprietary AM210® coating provides a 25 to 50% increase in tool life over the competition
  • Internal/external thread
  • Thicker core for increased strength
  • Sub-micrograin size carbide substrate for strength and toughness
  • 60 deg thread
  • 1/4 P internal
  • 1/8 P external
  • Solid carbide materia
