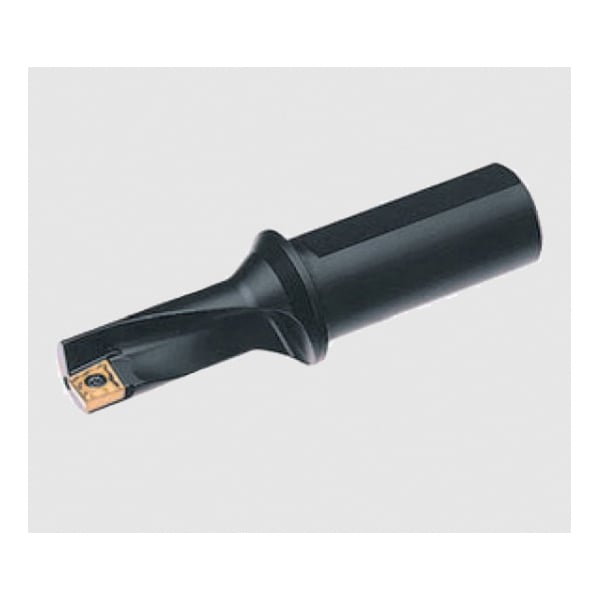

Allied Machine & Engineering 11065230 EC 16 Turning & Boring Holder, 0.75 in Dia Shank, Drill Depth by Dia Ratio, XC 0803 Insert, 3.73 in OAL, 1.42 in D Max Drill
Allied Machine & Engineering 11065230 EC 16 Turning & Boring Holder, 0.75 in Dia Shank, Drill Depth by Dia Ratio, XC 0803 Insert, 3.73 in OAL, 1.42 in D Max Drill
SKU: ALLMA 11065230
Manufacturer Part Number: 11065230
Brand: Allied Machine & Engineering
Description
Specifications
| Diameter | 0.63 in |
| Drill Depth by Diameter Ratio | 2.25XD |
| Flute Length | 1.42 in |
| Insert Compatibility | XCET 080304FN-27P; XCET 080304FN-27Q; XCNT 080304EN; XCNT 080304EN-M50Q |
| Insert Style | XC 0803 |
| Maximum Drill Depth | 1.42 in |
| Number of Drill Inserts | 1 |
| Overall Length | 3.73 in |
| Series | EC 16 |
| Shank Diameter | 0.75 in |
| Shank Length | 2 in |
| Shank Type | Lathe |
| Through Coolant (Yes/No) | Yes |
| Type | Turning & Boring Holder |
Country of Origin: Bulgaria
Features
- Reduce your tooling inventory
- Reduce the number of steps required to complete an operation
- Increase your overall productivity
- Lower your cycle time
- Drilling applications
- Boring applications
- Facing operations
- Standard turning operations
